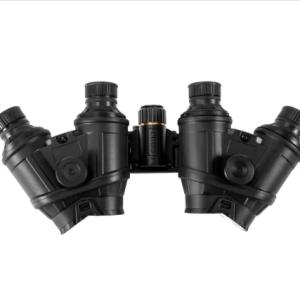

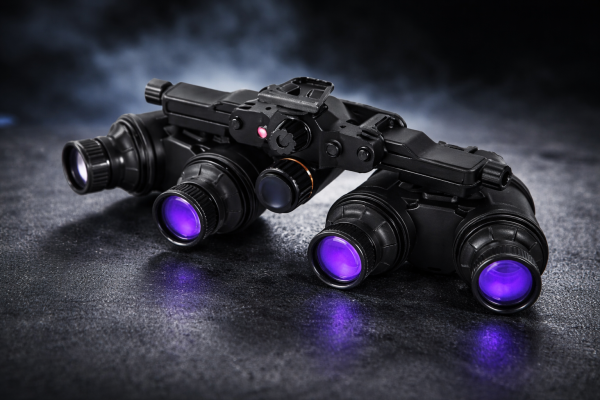

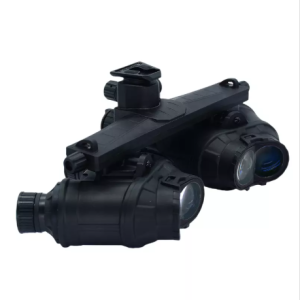

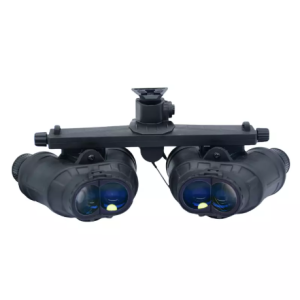

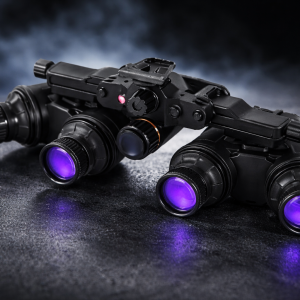

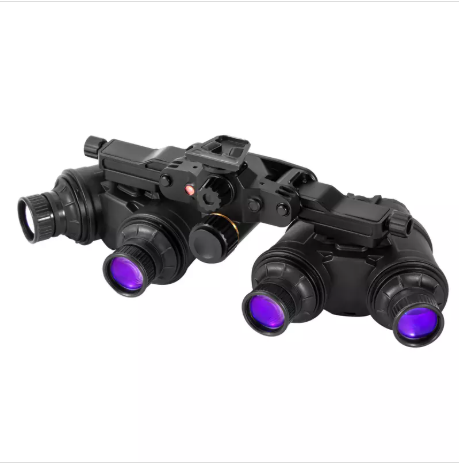

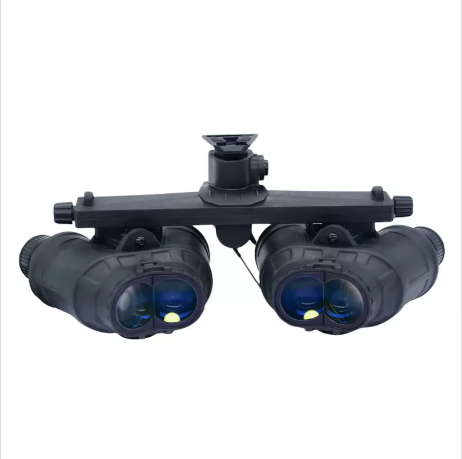

Military Hub Gen2+/Gen3 Ground Panoramic Night Vision Goggles
It’s a four-eye night vision goggles offers a true 120° wide field of view, significantly expanding peripheral vision and enhancing situational awareness. It can be side fiip up on or off, which provides users with more information in a dark environment and to pass the OODA loop (observation, orientation, decision, action) faster. Available with Gen2+ or optional Gen3 image intensifier tubes, this ground panoramic night vision goggle delvers clear, high-contrast imaging even under extremely low-light conditions.
Overview

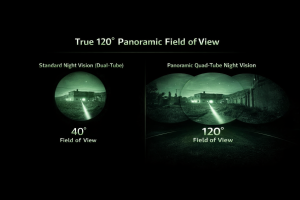

1. True 120°Panoramic Field of View
With 4 image tubes & 4 objective lenses arranged in a panoramic direction, the night vision goggle provides wider vision compared to standard 40°systems, enhancing depth perception and peripheral detection
2. Adjustable Diopter (±3)
The ground panoramic night vision goggle allows users to quickly fine-tune focus based on individual eyesight, eliminating the need for interchangeable eyepieces.
3.Flip-Up Auto On/Off Function
The night vision goggle supports side flip-up operation with automatic power on/off, allowing users to quickly transition between active and standby modes. By enabling faster response and seamless operation in low-light environments, it helps accelerate the OODA loop and conserving battery life.
4.Zero Distortion Imaging
This military night vision goggles provides a clear, edge-to-edge image with minimal distortion across the entire field of view. In complete darkness, its built-in 850nm infrared illuminator enables clear visibility even without ambient light.
| MODE | DTG-18s |
| Generation | Gen 2+/Gen3(optional) |
| Magnification | 1X |
| FOV(°) | 120×50 +/-2 °
Horizontal 120+/-2 ° Vertical 50 +/-2 ° |
| Diopter | （+1.5~-2.5） |
| Capability | Flip-Up On-Off |
| Automatic Brightness Control | YES |
| Bright Light Cut-off | YES |
| Infrared Illuminator | Built-in(850nm 20mW) |
| IR Indicator | YES |
| Low Battery Indicator | YES |
| Battery type | CR123Ax1 / CR123Ax4 Battery pack |
| Power supply | 2.6-4.2V |
| Battery capacity | 800-3200maH |
| Optical distortion | 0.5% Max |
| Eye relief | 30mm |
| Pupil diameter | 8mm |
| Operating temperature(℃) | -40–+55℃ |
| Humidity range | 5%-95% |
| Waterproof | IP65/IP67 |
| Dimensions | 150x130x75 mm |
| Weight | 495g(housing)/780g(finished) |
FAQ
Q1: What is the main advantage of military night vision goggles?
A1: The night vision goggles provides unprecedented 120° panoramic field of view, reducing the need for head movement and improving situational awareness. The two central lenses face forward, similar to traditional systems, providing strong depth perception. The two outer lenses are angled outward to expand peripheral vision. All four image channels are seamlessly fused at the eyepiece, creating a single, continuous panoramic image for faster recognition and decision-making in the dynamic environment.
Q2: Can this ground panoramic night vision goggle be used in complete darkness?
A2: Yes. The built-in 850nm infrared illuminator enables visibility even in zero-light environments.
Q3: What generation tubes are available?
A3: The device supports Gen2+ as standard, with optional upgrade to Gen3 for higher performance and sensitivity.
Q4: How long does night vision goggle last?
A4: The night vision system utilizes standard CR123A batteries or an external battery pack (800–3200mAh). Actual runtime varies depending on usage conditions, especially the use of the infrared illuminator.
Q5: Is ground panoramic night vision goggle suitable for harsh environments?
A5: Yes. It is waterproof (IP65/IP67), operates from -40°C to +55°C, and is designed for demanding environments.
About Military Hub
With over 10 years of experience, Military Hub is a professional night vision equipment manufacturer based in China. We specialize in the development and production of high-performance night vision devices for military and tactical applications.
All products are CE certified, and we support bulk production and large-volume orders. For more information, please contact our sales team.
